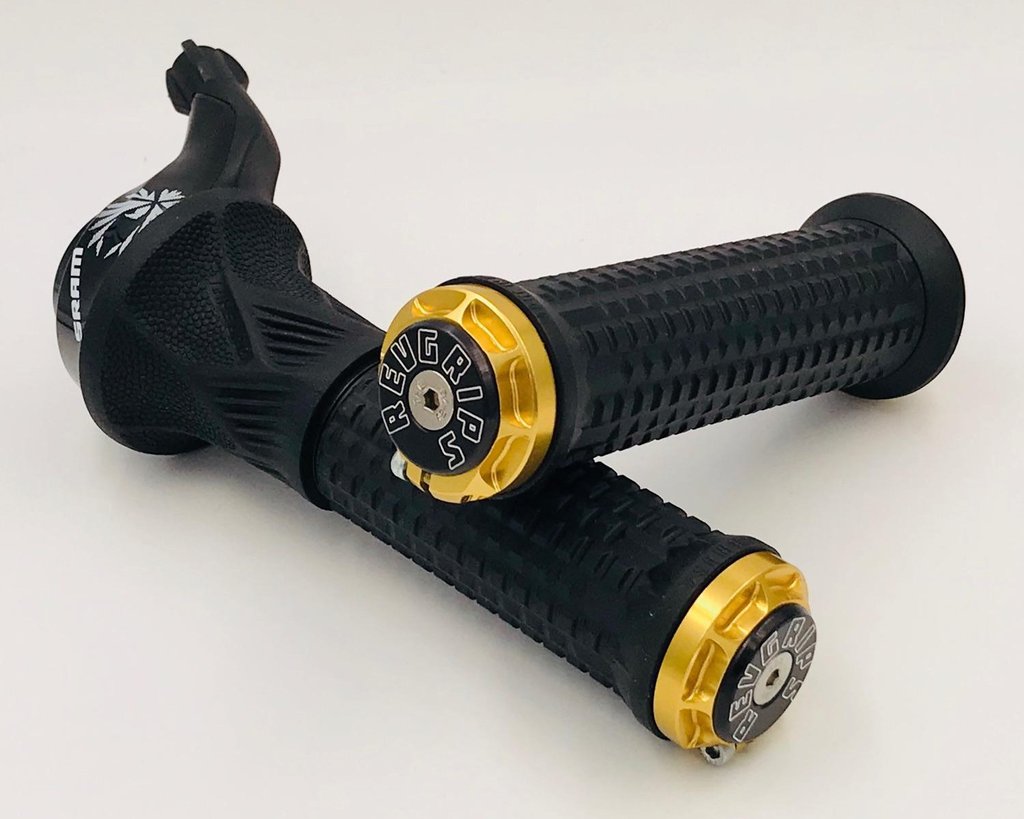

RevGrip Pro System Grip Shift 34MM

Our all new Grip Shift Compatible Pro Series Shock Absorbing Grip System. This is our Top Shelf grip system complete with a tuning kit, assembly tools, and lightened clamps in your color choice.  Everything needed to install and adjust your grip system is in the box.  Our Grip Shift system is available in a Medium (32.5mm) Grip, Black color only.  Some assembly required.  Once you have a set, all of the soft goods (Grip, Inserts, etc.) can be replaced

How did we make our system grip shift compatible?  We take a standard Medium Grip Sleeve, cut it to size in our CNC WaterJet Machine, and install a bushing in the side of the grip we cut.  We use our Pro-Series clamp toward the outside of the handlebar complete with Eliminator series inserts.  The Sleeve is still suspended from contact with your bar and the Eliminator inserts keep the movement where it should be.

All Race and Pro Series parts are interchangeable.

Everything listed below is included in the box. (Grip Shifter is NOT included)

- (1) Standard Grip Sleeve    - (1) Grip Shift Grip Sleeve    -(3) Ultra Light Aluminum Clamps    - (18) Shock Absorbing Inserts    -(4) Tuning Washers    - (2) Aluminum Bar End Assemblies    - (4) Clamp Screws    -(1) 2.5mm Hex Wrench    - (1) 3mm Hex Wrench

RevGrip Reviews









HOW THEY WORK

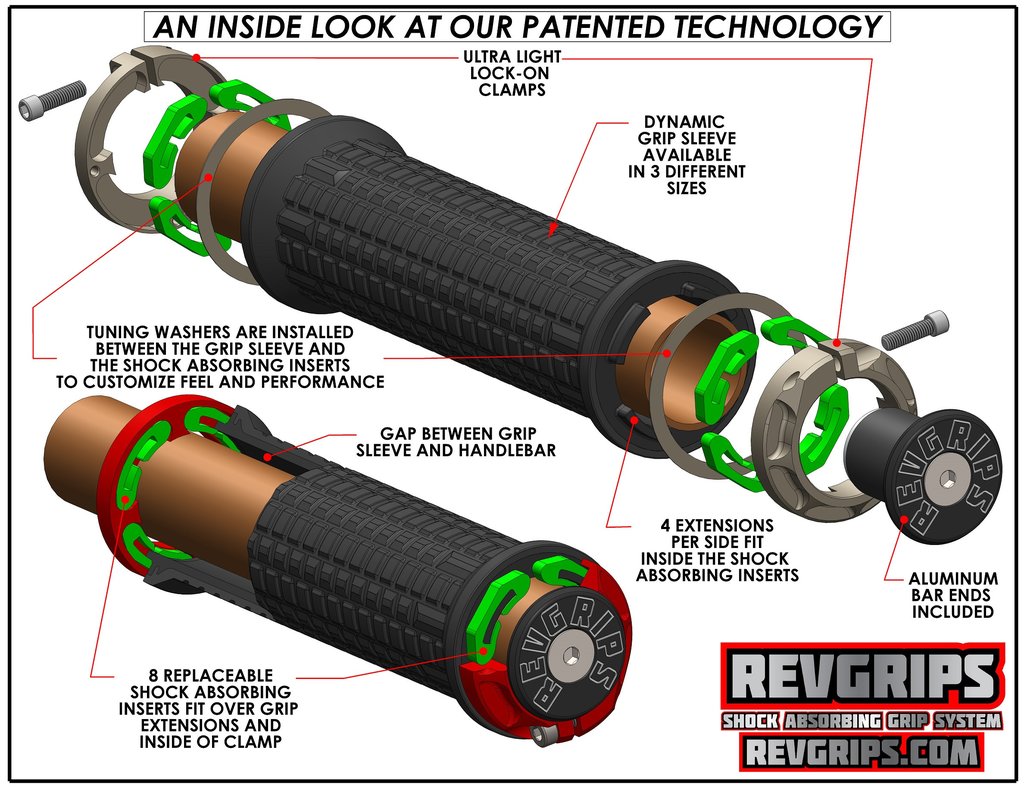

  Pictured above is a sectional view of the Grip Assembly. This grip is different than any other grip because it  DOES NOT make contact with your Handlebar. The Inner Diameter of the Grip is approximately 1/8 of an inch larger than the Outside Diameter of the handlebar.   This unique design allows the Grip to work independent from your handlebar and isolated from shock and vibration. Tuning washers are used to customize feel and performance from ultra soft to ultra firm and anywhere in between.

Pictured below are the Assembly Instructions. (CLICK TO DOWNLOAD PDF)

Grip Sleeve (A) Free Floats within the Shock Absorbing Inserts (C) that are contained inside the Lock-On Clamps (E).  The Grip's torsional (twist) and axial (up-down) movement is limited and controlled by the Shock Absorbing Inserts (C).  The grip feel and shock absorbing characteristics are adjusted with the tuning washers (B) or a combination of inserts as described below.

   The only part of the system making contact with your handlebar is the clamp itself, which contains the shock absorbing inserts that capture your grip and allow controlled and adjustable shock absorption.
