Vorsprung Suspension Tools

The tools required to fitting a Vorsprung Luftkappe Kit

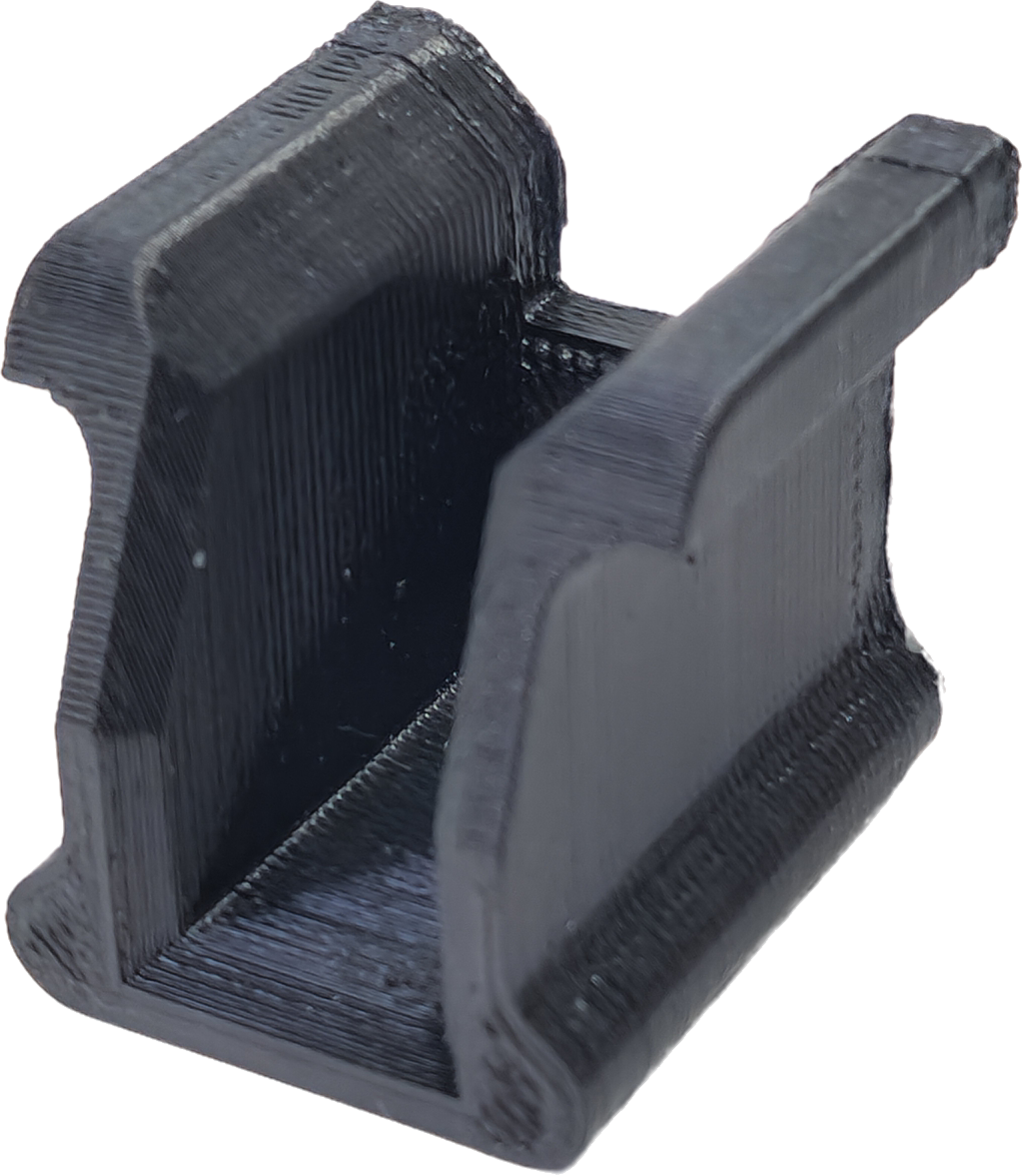

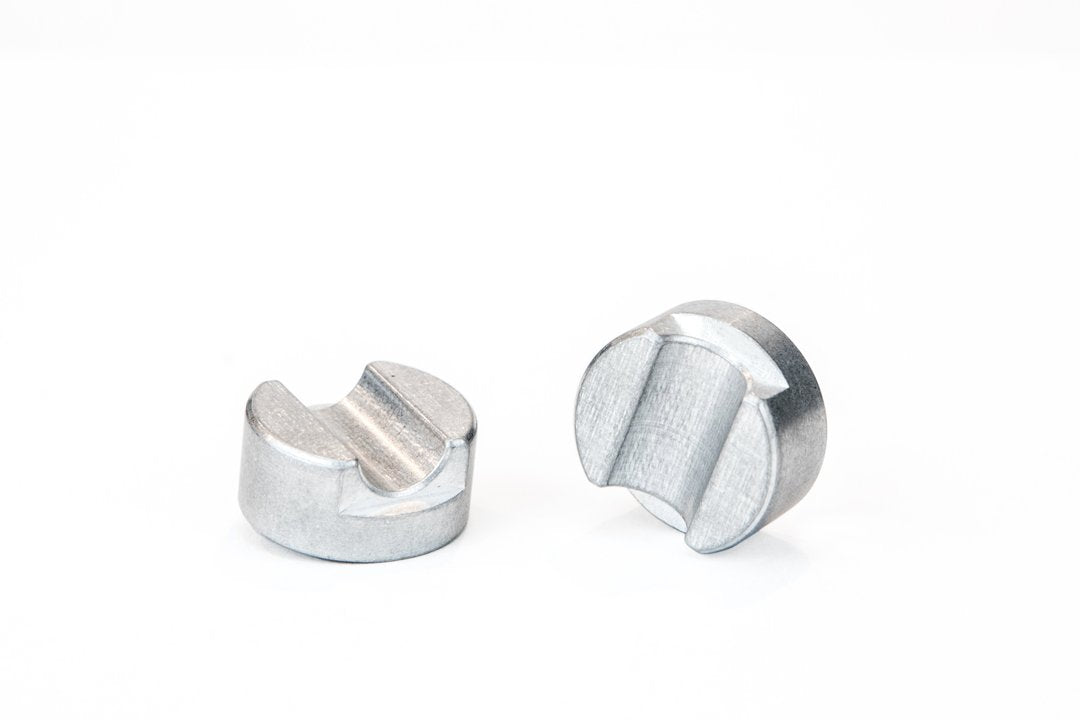

10mm Shaft Clamps:

• Used to grip the 10mm air spring shaft without damaging it in the process.
• Needed in the fitment of the Rockshox and Fox luftkappe kit installation.

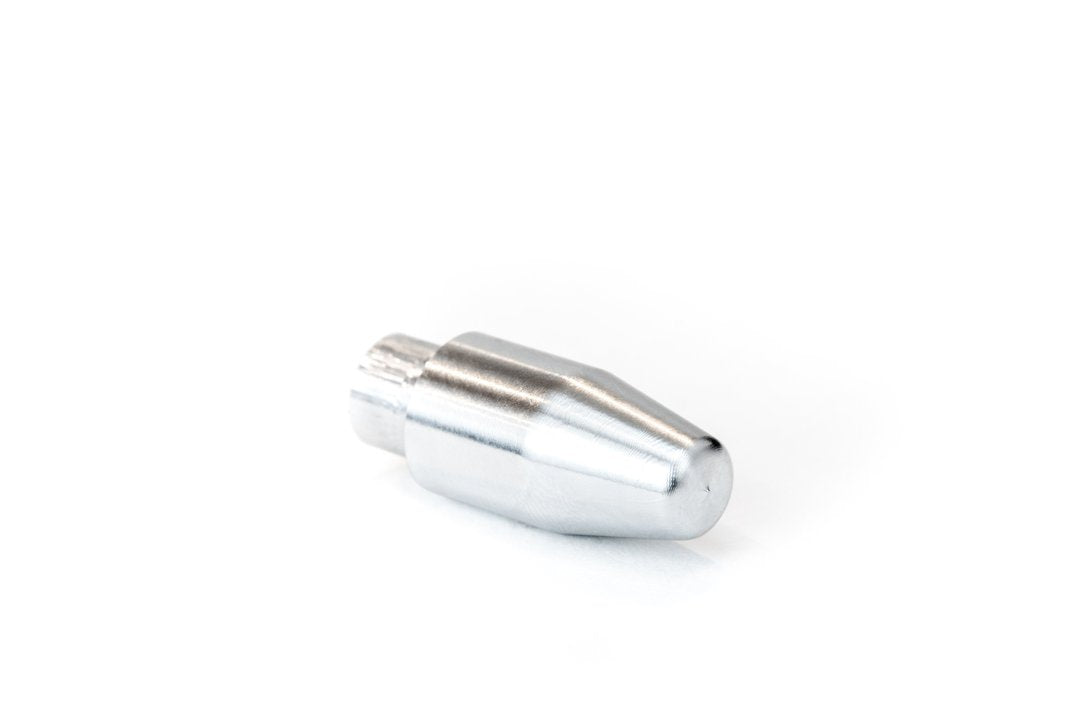

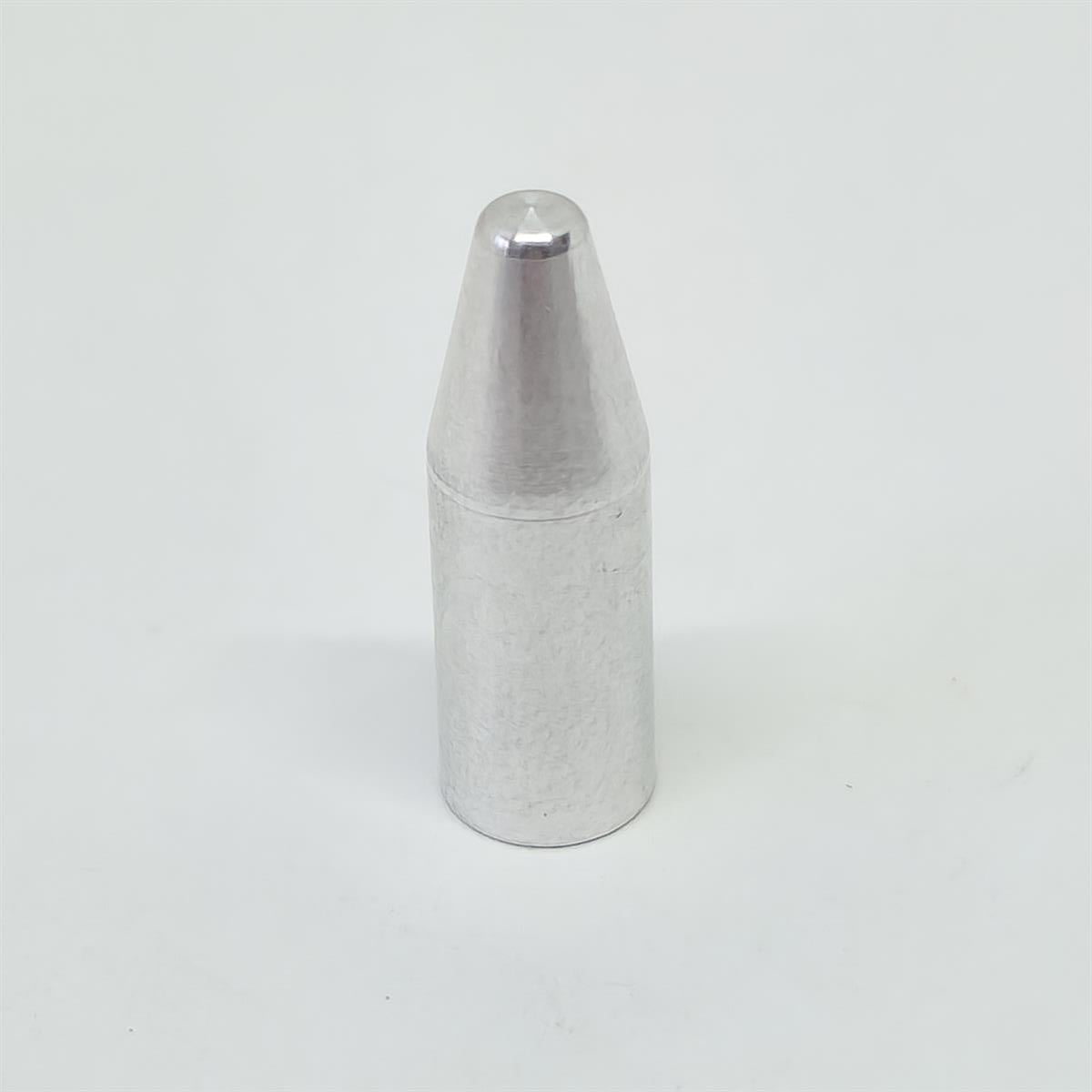

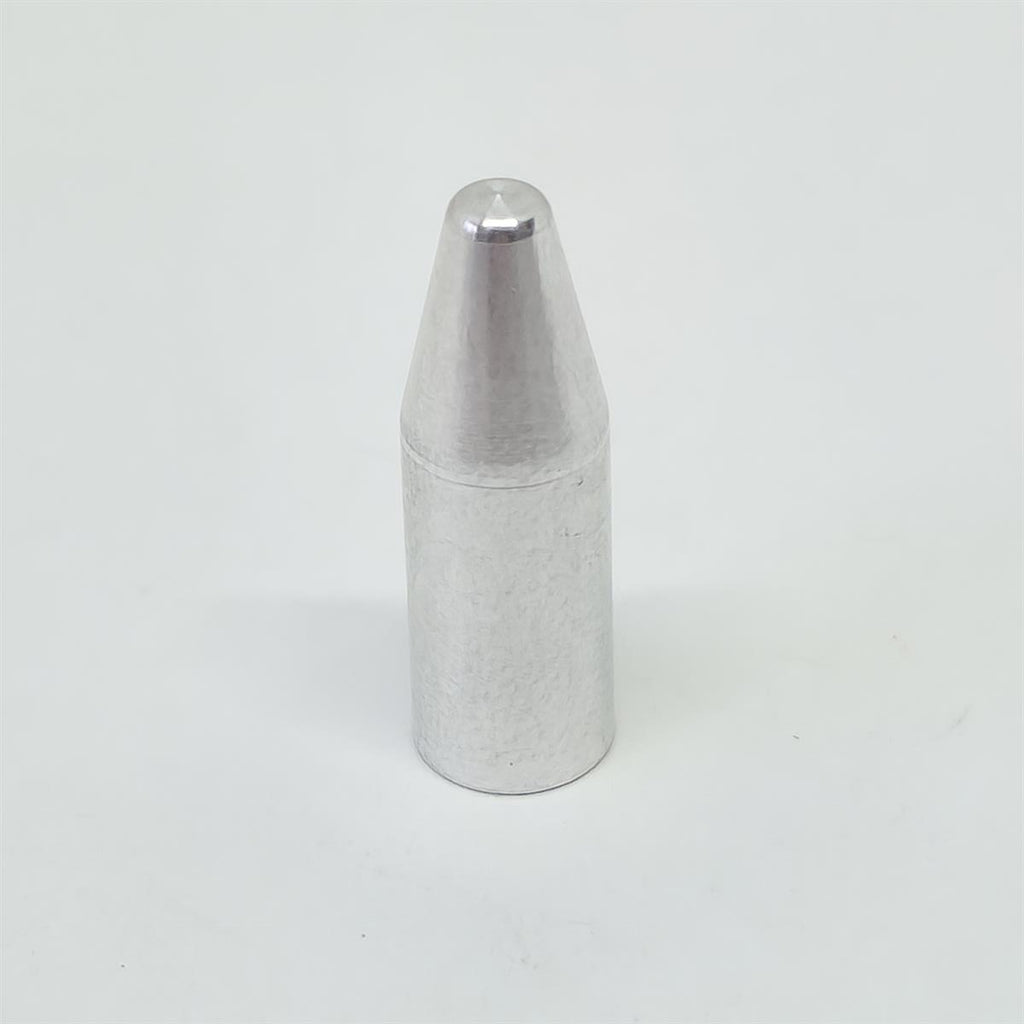

10mm Bullet Tool:

• Used to fit the new NA2 low friction seal head on to 10mm air spring shaft.
• Needed in the fitment of the Fox 34mm NA2 luftkappe kit.

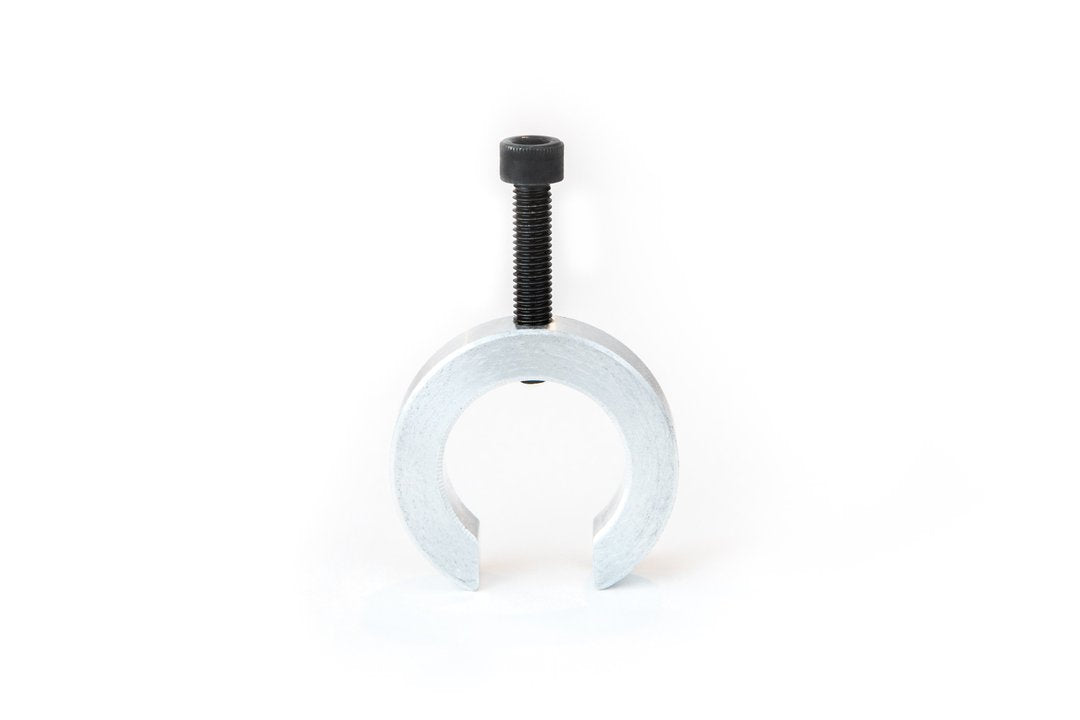

Roll Pin Press:

• Used to press the old roll pin out of the Fox Evol 34mm and 36mm air spring shaft with damaging the assembly in the process.
• Needed in the fitment of the Fox Evol 34mm and 36mm luftkappe kit.

Fox NA2 luftkappe kit requires the:

• 10mm Shaft Clamps
• 10mm Bullet Tool

Fox Evol 34mm and 36mm luftkappe kit requires the:

• Roll Pin Press
• 10mm Shaft Clamps
  (not a must, but if you feel the need to clamp the air spring shaft with the vise you will need these)

• 10mm Bullet Tool
  (not a must, but if you slide the seal head off the 10mm air spring shaft, you will need this tool to fit back on to the shaft without damaging the O-ring in the seal head assembly)

Rockshox Lyrik, Pike and Yari luftkappe kit requires the:

• 10mm Shaft Clamps
